Siffofin Ratchet Type Load Bindera.Safiya, ƙirar abin dogara don sauƙin aiki.
b.No da ake bukata don kulle abin riƙewa fiye da nau'in lever mai ɗaukar nauyi.
c.Haƙƙarfan ingancin ƙirar ƙirar ƙira, Heat ya bi don ƙarin ƙarfi.
d.Short isa ƙugiya samar da ganiya take-up
e.Kowane madogarar da aka gwada hujja.

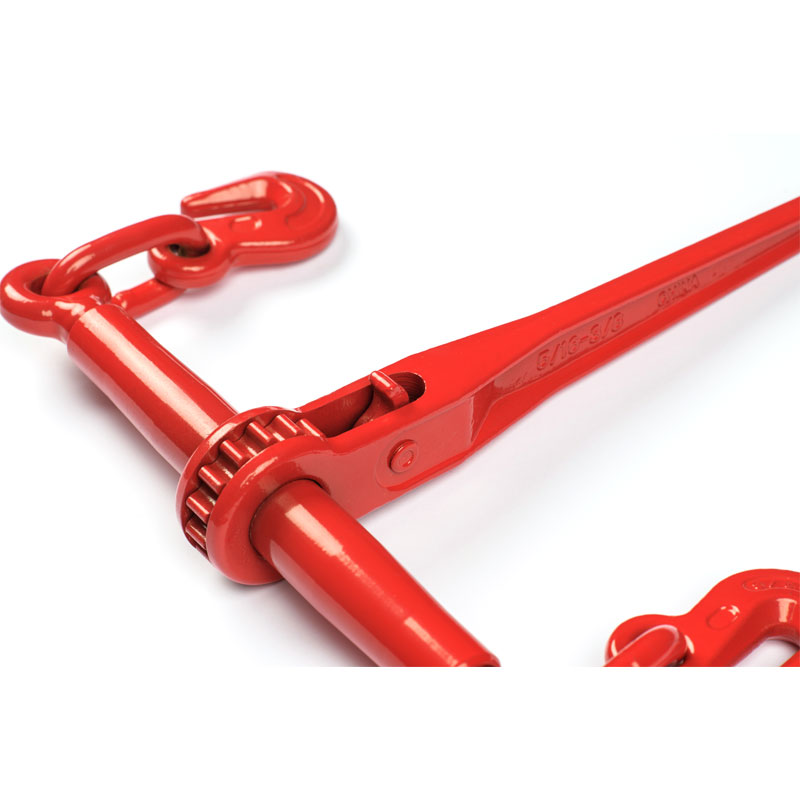

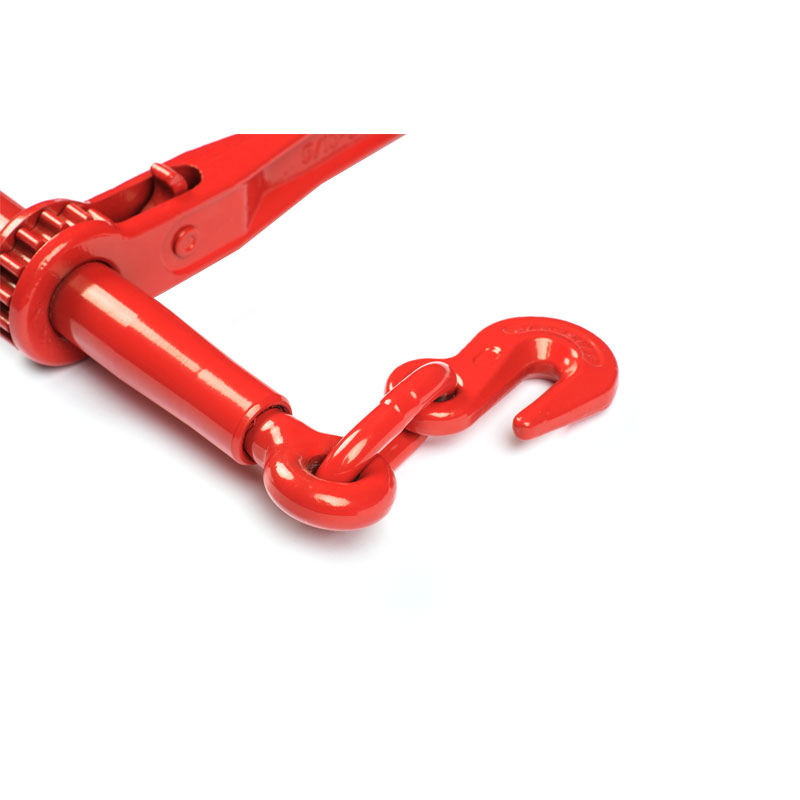

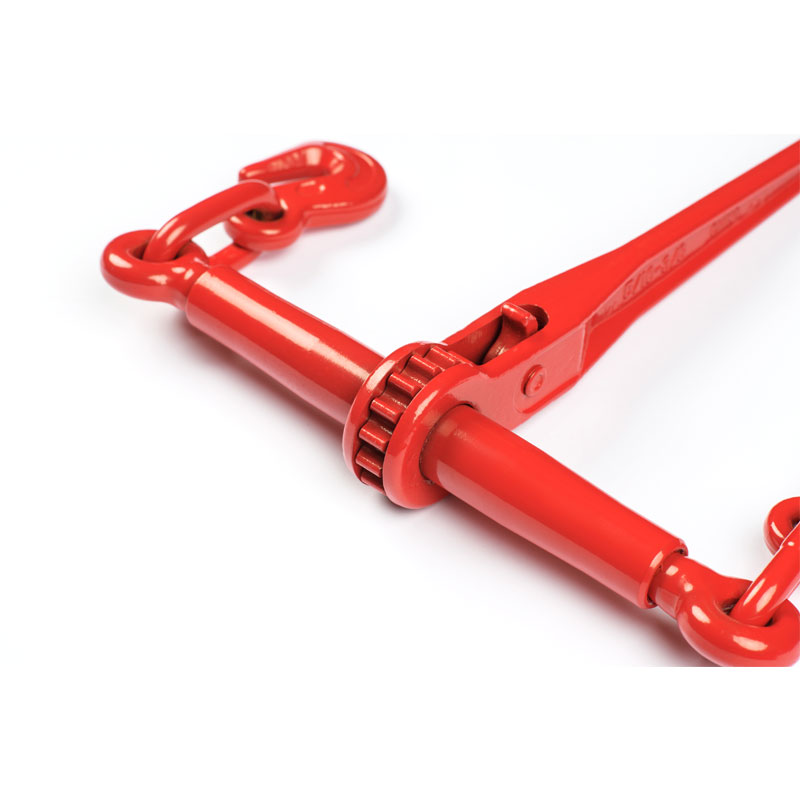

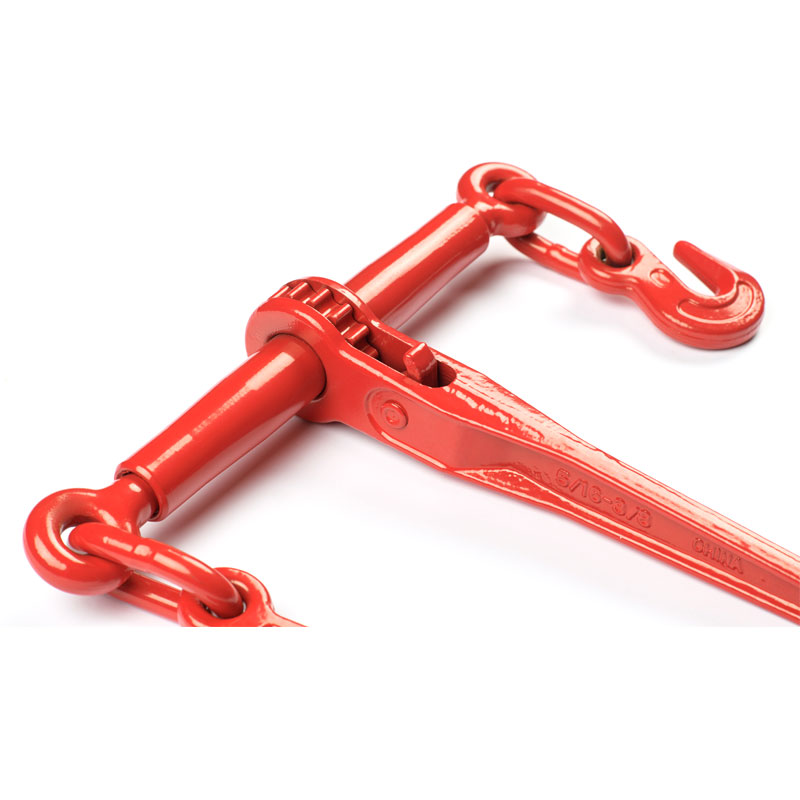

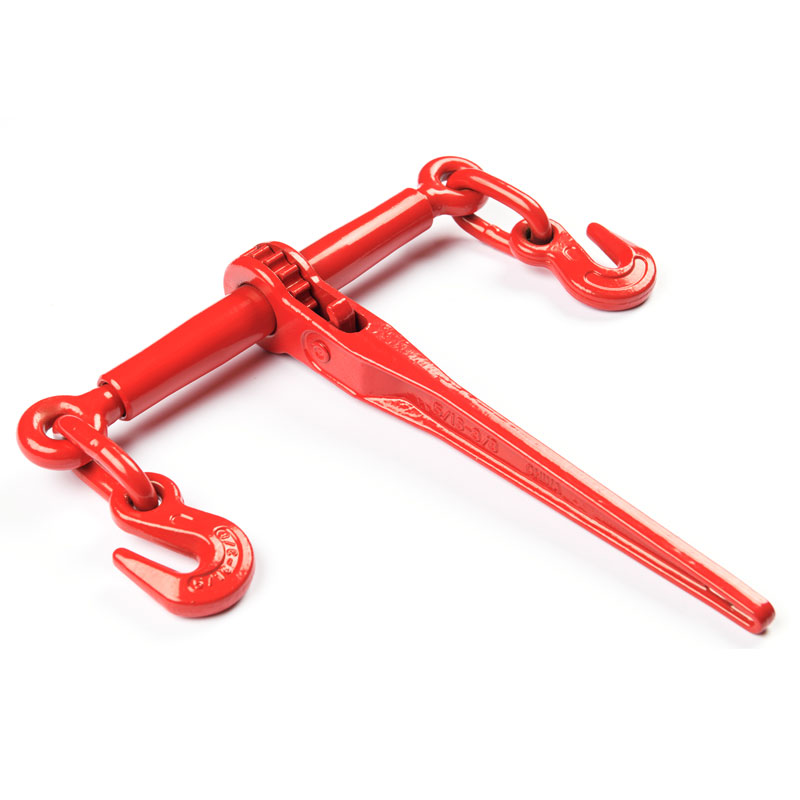

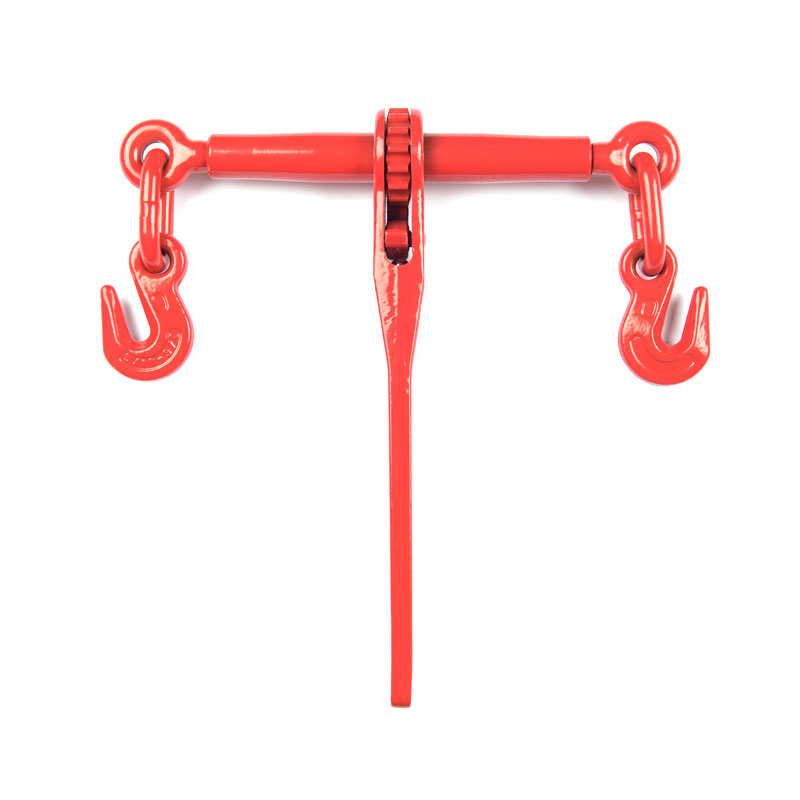

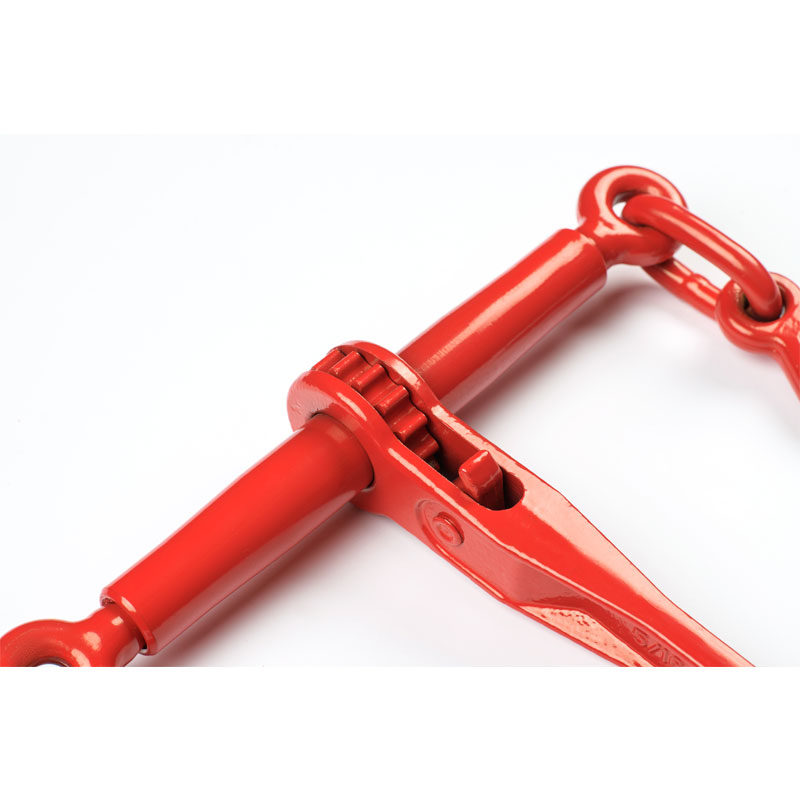

Ratchet Type Load Binder Features
a.Safety, abin dogaran don sauƙin aiki.
b.No da ake bukata don kulle abin riƙewa fiye da nau'in lever mai ɗaukar nauyi.
c.Haƙƙarfan fa'idar ƙirar ƙarya, Heat ya bi don ƙarin ƙarfi.
d.Short isa ƙugiya samar da ganiya take-up
e.Kowane madogarar da aka gwada hujja.
| Min-Max Girman Sarkar (cikin) |
Kayan aiki iyakance (lbs) |
Tabbataccen kaya (lbs) |
Ƙarshen Minimun kaya (lbs) |
Weight/Kowane (lbs) |
Tsawon Rikewa (cikin) |
Girma (a ciki) | |||||||
| A | B | C | E | E1 | F | F1 | G | ||||||
| 1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.2 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.14 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
