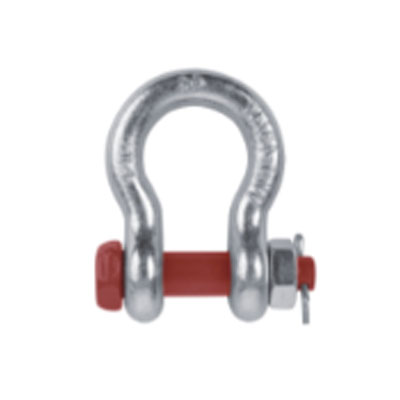

US TYPE High Tensile ƙirƙira Shackle G2130

Siffar US TYPE High Tensile Forged Shackle G2130US nau'in
Kayan abu ï¼40cr
Ƙera Karfe
Ƙarshen kayaï¼šW.L.L*4
Surface Treatmentï¼š Ƙaƙƙarfan launi, Zinc pleated, Tsoma-tsoma dalvanized,
Trivalent chromium plating zinc, foda shafi

Aika tambaya

Bayanin Samfura

US TYPE High Tensile ƙirƙira Shackle G2130 Siffa

Nau'in Amurka
Kayan abu ï¼40cr
Ƙera Karfe
Ƙarshen kayaï¼šW.L.L*4
Surface Treatmentï¼š Ƙaƙƙarfan launi, Zinc pleated, Tsoma-tsoma dalvanized,
Trivalent chromium plating zinc, foda shafi

US TYPE High Tensile ƙirƙira Shackle G2130 Musammantawa

Girman Ciki	Kayan aiki iyaka (ton)	Dimensinons (mm)									Nauyin kowane
Girman Ciki	Kayan aiki iyaka (ton)	A	B	C	D	E	F	G	H	I	Nauyin kowane
3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	37.2	24.9	4.85	0.03
1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	0.05
5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	53	37.3	7.85	0.1
3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	63	45.2	9.65	0.15
7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	74	51.5	11.2	0.22
1/2	2	20.6	16	47.8	12.7	33.3	30.2	83.5	58.5	12.7	0.36
5/8	3-1/4	26.9	19.1	60.5	16	42.9	38.1	106	74.5	17.5	0.76
3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	126	89	20.6	1.23
7/8	6-1/2	36.6	25.4	84	22.4	58	53	148	102	24.6	1.79
1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	2.57
1-1/8	9-1/2	46	31.8	108	28.7	74	68.5	190	131	31.8	3.75
1-1/4	12	51.5	35.1	119	31.8	82.5	76	210	146	35.1	5.31
1-3/8	13-1/2	57	38.1	133	35.1	92	84	233	162	38.1	7.18
1-1/2	17	60.5	41.4	146	38.1	98.5	92	254	175	41.1	9.43
1-3/4	25	73	51	178	44.5	127	106	313	225	57	15.4
2	35	82.5	57	197	51	146	122	348	253	61	23.7
2-1/2	55	44.6	105	70	267	66.5	184	145	453	327	44.61
3	85	127	82.5	330	76	200	165	546	365	92	70
3-1/2	120	133	95.5	372	92	229	203	626	419	105	120
4	150	140	108	368	104	254	229	653	468	116	153
