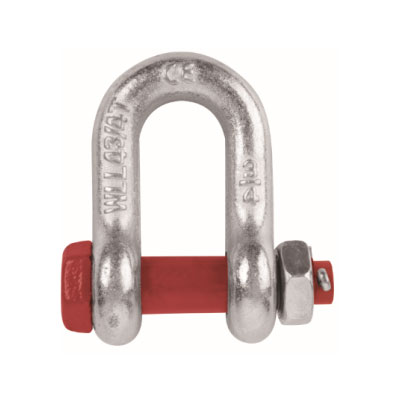

US TYPE High Tensile ƙirƙira Shackle G2150

Siffar US TYPE High Tensile Forged Shackle G2150US nau'in
Kayan abu ï¼40cr
Ƙera Karfe
Ƙarshen kayaï¼šW.L.L*4
Surface Treatmentï¼š Ƙaƙƙarfan launi, Zinc pleated, Tsoma-tsoma dalvanized,
Trivalent chromium plating zinc, foda shafi

Aika tambaya

Bayanin Samfura

US TYPE High Tensile ƙirƙira Shackle G2150Siffa

Nau'in Amurka
Kayan abu ï¼40cr
Ƙera Karfe
Ƙarshen kayaï¼šW.L.L*4
Surface Treatmentï¼š Ƙaƙƙarfan launi, Zinc pleated, Tsoma-tsoma dalvanized,
Trivalent chromium plating zinc, foda shafi

US TYPE High Tensile ƙirƙira Shackle G2150 Musammantawa

Girman Ciki	Iyakar nauyin aiki (tan)	Dimensinons (mm)									Nauyin kowane
Girman Ciki	Iyakar nauyin aiki (tan)	A	B	C	D	E	F	G	H	I	Nauyin kowane
1/4	1/2	11.9	7.85	6.35	15.5	19.1	40.4	24.6	39.6	6.35	0.06
5/16	3/4	13.5	9.65	7.85	19.1	25.4	48.5	29.5	46.2	7.85	0.1
3/8	1	16.8	11.2	9.65	23.1	31	58.5	35.8	55	9.65	0.15
7/16	1-1/2	19.1	12.7	11.2	26.9	36.1	67.5	41.4	63.5	11.2	0.22
1/2	2	20.6	16	12.7	30.2	41.4	77	46	71	12.7	0.34
5/8	3-1/4	26.9	19.1	16	38.1	51	95.5	58.5	89.5	17.5	0.67
3/4	4-3/4	31.8	22.4	19.1	46	60.5	115	70	103	20.6	1.14
7/8	6-1/2	36.6	25.4	22.4	53	71.5	135	81	120	24.6	1.74
1	8-1/2	42.9	28.7	25.4	60.5	81	151	93.5	135	25.4	2.52
1-1/8	9-1/2	46	31.8	28.7	68.5	91	172	103	150	31.8	3.45
1-1/4	12	51.5	35.1	31.8	76	100	191	115	165	35.1	4.9
1-3/8	13-1/2	57	38.1	35.1	84	111	210	127	183	38.1	6.24
1-1/2	17	60.5	41.4	38.1	92	122	230	137	196	41.1	8.39
1-3/4	25	73	51	44.5	106	146	279	162	230	54	14.2
2	35	82.5	57	51	122	172	312	184	264	51	21.2
2-1/2	55	105	70	66.5	145	203	377	238	344	66.5	38.6
3	85	127	82.5	76	165	216	429	279	419	89	56

Zafafan Tags: US TYPE High Tensile ƙirƙira Shackle G2150, China, ƙera, Masu kaya, masana'anta, Musamman, Sabuwa
